Handpieces

International success with Austrian dental technology

The W&H Group is one of the top leading manufacturers of rotating dental instruments in the world. Established in 1890 by the precision engineers Weber and Hampel, the company was acquired by the Malata Family in 1958. Innovative product and service solutions, a strong focus on research and development, vision and social responsibility have made W&H a successful local and global player. The long years of partnership of W&H and Dental Domain Corp. is a garant for innovative products and reliable service.

Synea Turbines

High-end technology for excellent preparation results: Both of the Synea dental turbine lines are characterised by high performance, optimal ergonomics and outstanding value for money. Synea Vision is symbolic of innovations such as the sterilizable 5x Ring LED+ and Synea Fusion promises top quality combined with unbeatable cost-efficiency.

Synea Vision

Your advantages at a glance

  • 100% shadowless illumination of the treatment site with the Ring LED+
    (with the Roto Quick system only)
  • Optimal power
  • Optimum cooling of the treatment site with 5x spray
  • Four head sizes for every application case
  • Hygienic head system
  • Scratch-resistant surface improves aesthetics even more – and extends their life
  • Fatigue-free work
  • Optimum service life and unexpected quietness during operation with ceramic ball bearings
  • Thermo washer disinfectable and sterilizable

Synea Vision Turbines

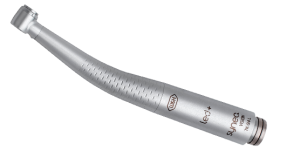

TK-94 Synea Vision W&H Handpiece

TK-94

LED+,
5x spray,
Head size Ø 9 mm,
14 W*, 410,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 16 mm

TK-94 L
REF 30016000
LED+, ceramic ball bearings,coupling system Roto Quick

TK-94 LM
REF 30031000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

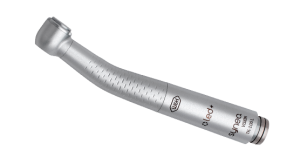

TK-100 Synea Vision W&H Handpiece



TK-100

Ring LED+,
5x spray,
Head size Ø 13 mm,
26 W*, 330,000 rpm,
FG burs Ø 1.6 for bur lengths up to 25 mm

TK-100 L
REF 30021000
Ring LED+, ceramic ball bearings,coupling system Roto Quick

TK-100 LM
REF 30022000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

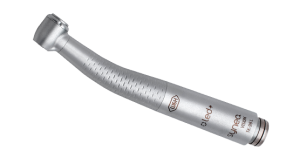

TK-98 Synea Vision W&H Handpiece



TK-98

Ring LED+,
5x spray,
Head size Ø 11,5 mm,
24 W*, 360,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm

TK-98 L
REF 30019000
Ring LED+, ceramic ball bearings,coupling system Roto Quick

TK-98 LM
REF 30020000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

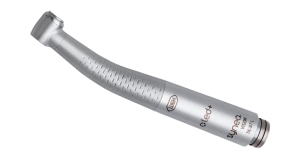

TK-97

Ring LED+,
5x spray,
Head size Ø 10 mm,
21 W*, 400,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 21 mm

TK-97 L
REF 30017000
Ring LED+, ceramic ball bearings,coupling system Roto Quick

TK-97 LM
REF 30018000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

Synea Fusion

Our advantages at a glance

  • Largest illumination field with LED+
  • Optimum access, best view and high power with perfect head size to performance ratio
  • Safe cooling with Quattro Spray (4 port spray)
  • Hygienic head system
  • Ceramic ball bearings for quiet, vibration-free operation
  • Optimised design for secure grip and optimum hygiene
  • Secure grip and easy bur changes with the push-button chuck system
  • Thermo washer disinfectable sterilizable

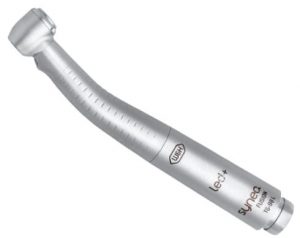

Synea Fusion Turbines

TG-97 Synea Fusion W&H Handpiece

TG-97

Quattro Spray
Head size Ø 10 mm,
18 W*, 390,000 rpm,
FG burs Ø 1.6 for bur lengths up to 21 mm

TG-97
REF 30005000
Without light, ceramic ball bearings,coupling system Roto Quick

TG-97 L
REF 30004000
LED+, ceramic ball bearings,coupling system Roto Quick

TG-97 LM
REF 30006000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

TG-97 L N
REF 30199000
Compact glass rod, ceramic ball bearings,coupling system NSK Mach®**

TG-97 L RM

REF 30197000
LED+, ceramic ball bearings,standard 6-hole connection



TG-97 Synea Fusion W&H Handpiece

TG-98

Quattro Spray,
Head size Ø 11,5 mm,
21 W*, 360,000 rpm,
FG burs Ø 1.6 mm for bur lengths up to 25 mm

TG-98
REF 30002000
Without light, ceramic ball bearings,coupling system Roto Quick

TG-98 L
REF 30001000
LED+, ceramic ball bearings,coupling system Roto Quick

TG-98 LM
REF 30003000
Compact glass rod, ceramic ball bearings,coupling system Multiflex®**

TG-98 L N
REF 30200000
Compact glass rod, ceramic ball bearings,coupling system NSK Mach®**

TG-98 L RM
REF 30198000
LED+, ceramic ball bearings,standard 6-hole connection



Alegra turbines

With Alegra dental straight and contra-angle handpieces from W&H the treatment of your patient is very efficient and extremely safe.

WE-46 T Contra Angle Alegra W&H handpiece

WE-56 T
REF 30120000
Contra-angle handpiece 1:1
Head size: Ø 10.1 mm
Head height (with 19 mm bur): 20.8 mm

Dental contra-angle handpiece with
push-button chucking system,
for contra-angle burs with Ø 2.35 mm (ISO 1797-1)
Drive speed: 40,000 min-1
Motor connection according to standard: ISO 3964
Outer diameter of the sheath: 18 mm

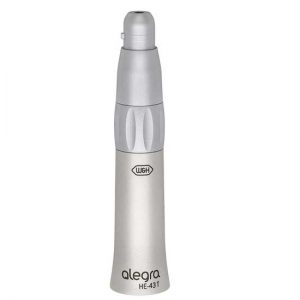

HE-43 T
REF 30123000
Straight handpiece 1:1

Dental straight handpiece with
twist tension chucking system, for handpiece and contra-angle burs with Ø 2.35 mm (ISO 1797-1)
Drive speed: 40,000 min-1
Motor connection according to standard: ISO 3964
Outer diameter of the sheath: 18 mm

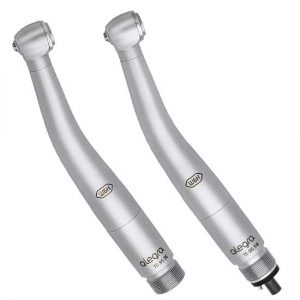

TE-95 BC/RM
2-hole/4-hole connection

Dental turbine handpiece with steel ball bearings, single spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330,000 -1



TE-97 LQ

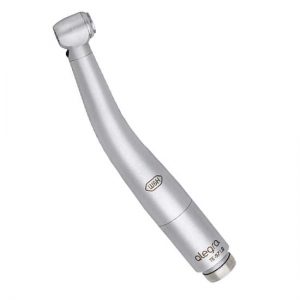

TE-97 LQ light W&H Alegra Handpiece

REF 30066000
Dental turbine handpiece with light
with Roto Quick connection

Dental turbine handpiece with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 10,4 mm
Power*: 16 Watt
Speed*: 390.000 min-1



TE-98 LQ

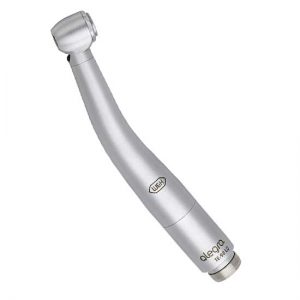

TE-98 LQ light W&H Alegra Handpiece

REF 30067000
Dental turbine handpiece with light
with Roto Quick connection

Dental turbine handpiece with light, with ceramic ball bearings, triple spray and push-button chucking system, for FG burs Ø 1.6 mm (ISO 1797-1)
Head size: Ø 12.2 mm
Power*: 18 Watt
Speed*: 330.000 min-1

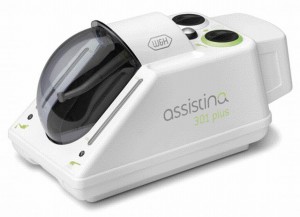

Assistina 301 plus – Maintenance System

Automatic instrument maintenance procedures provide distinct advantages for correct cleaning and lubrication as well as perfect function and long working life of dental instruments. It is simple, safe and cost-reducing. Assistina, the air-driven maintenance unit for:

  • straight and contra-angle handpieces
  • turbines
  • air motors
  • air-driven scalers from all major manufacturers.

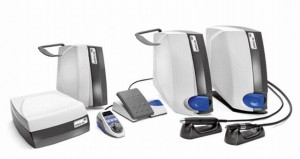

Perfecta 900

Therefore, when developing the new Perfecta range, particular value was placed

on ease of handling and the ergonomically innovative design.Unlike the traditional laboratory turbine, Perfecta 900 is perfectly suited to processing all materials right up to zirconium oxide and other high performance ceramics, owing to its optimized speed and speed-increasing handpiece.

Perfecta 300/600

A wide variety of materials, top-level requirements, constantly changing prerequisites – the daily bread of dental technicians. With Perfecta 300/600, you have a powerful laboratory device at your fingertips which can be used for a variety of purposes and which can bring your ideas and those of your customers effortlessly to life.LISA Sterilizers

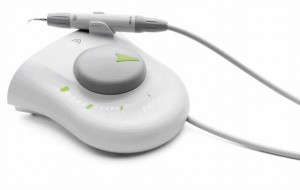

Pyon 2

Pyon 2: the LED piezo scaler for use in the areas of scaling, endodontics, periodontology and micro-preparation. Thanks to the new W&H piezo scaler, you can be sure to achieve the best results in all applications. The LED ring in the handpiece allows for much more thorough, precise work. The patient’s tooth colour can be reflected exactly and you are able to see contrasts much more clearly. A range of tips perfectly tailored to each individual application is essential for this – and is just as much part of Pyon 2 as the one-year warranty.

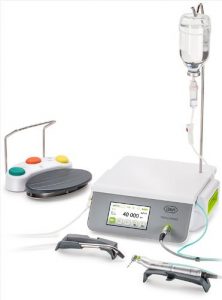

Implantmed

Implantmed knows what surgeons and implantologists need!Implantmed Plus W&H surgery machine

The new Implantmed from W&H ensures improved treatment safety for you and your patients. With the intuitive user interface, colour touch screen and glass surface the new Implantmed offers you the highest levels of comfort.

The drive unit is ideal for the purpose with its automatic thread cutter function, automatic torque control and the W&H Osstell ISQ module for measuring the stability of implants, which is available as an accessory.
Your advantages at a glance

  • Intuitive user interface
  • Secure torque control and measurable implant stability
  • Ultra-short, powerful electric motor
  • New pump design
  • Wireless foot control

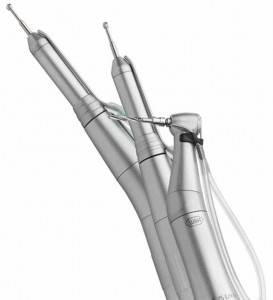

Surgical handpieces

W&H has developed a series of straight and contra angle handpieces for maxillo-facial surgery and microsurgery, which in addition to other advantages are distinguished by their reliability. This is advantageous for both to surgeon and patient.

The main features at a glance:

  • reliability resulting from durable design
  • long life – resulting from high quality stainless steel
  • slender shape – good view
  • sterilizable, thermo washer disinfectable

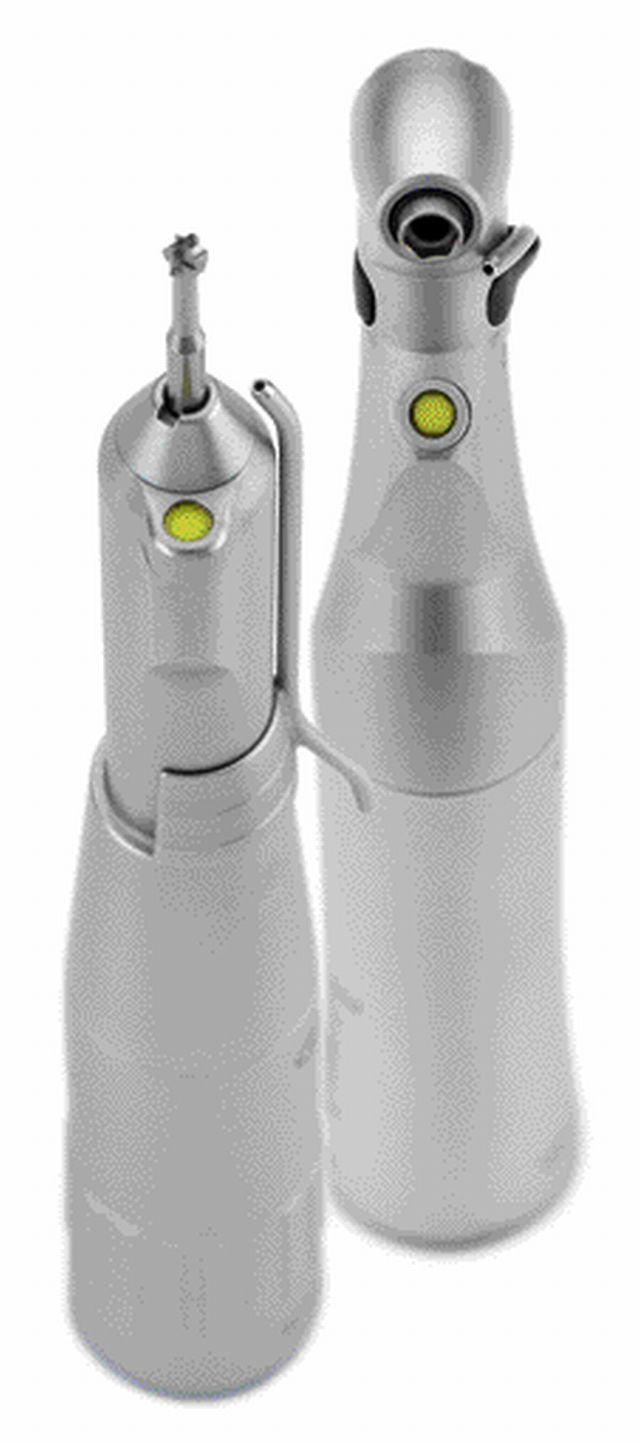

Surgical instruments with LED and generator – Superior operation with daylight quality light

The W&H surgical instruments with LED (Light Emitting Diodes) produce a pure
white light autonomously. This is through the integrated generator, which supplies energy to the LEDs in the SI-11 LED G and WI-75 LED G handpieces.

With their neutral white light, our LEDs prove themselves to be the ideal light source. That means that, irrespective of your drive system, you can have daylight quality light in your treatment area.

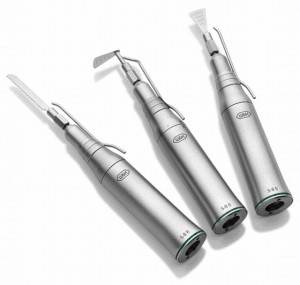

Surgical Saw Handpieces Working in all directions with our surgical saw handpieces S-8 R, S-8 S and S-8 O.


The three models offer a perfect and long-term solution for osteotomy or bone removal with sagittal, oscillating or reciprocating movement. Forward-looking technology from W&H. Well thought out dental instruments whose outstanding quality and ergonomics are irresistible.
